BrainPhys™原代神经元试剂盒

BrainPhys™ 原代神经元无血清培养试剂盒

只有 %1 左

率先评论此产品

¥3,848.00

产品号 #（选择产品）

产品号 #05794_C

BrainPhys™ 原代神经元无血清培养试剂盒

产品优势

更贴近大脑的细胞外环境；
增强神经元功能，具突触活性的神经元比例更高；
无需更换培养基和电击细胞的情况下进行功能分析；
支持ES/iPS细胞和中枢神经系统（CNS）来源的神经元的长期培养；
严格的原料筛选和质量控制可确保最大的减少批次间的差异

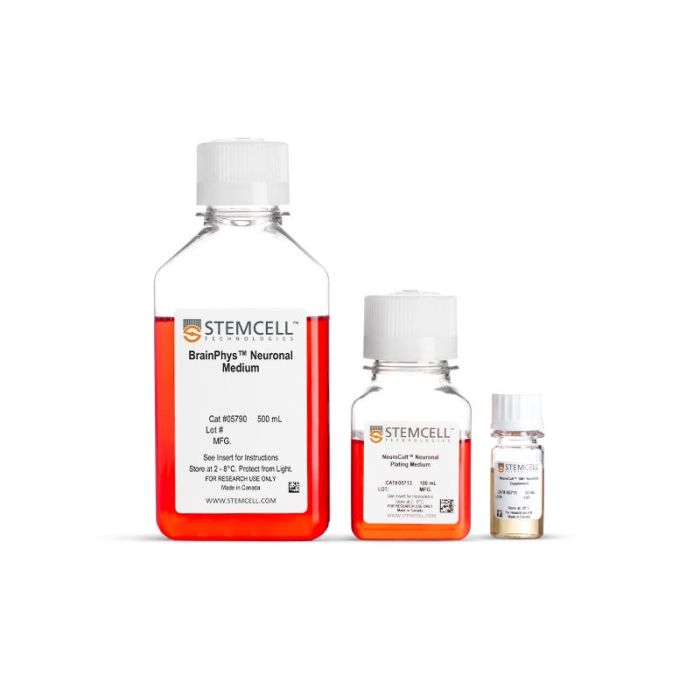

产品组分包括

NeuroCult™神经元铺板培养基，100 mL（产品号：#05713）；
NeuroCult™SM1神经元添加物，10 mL（产品号：#05711）；
BrainPhys™神经元培养基，500 mL（产品号：#05790）

立即询价

总览

在完全无血清的原代神经元培养基中培养中枢神经系统 (CNS) 神经元，该培养基经过优化，可促进而非抑制神经元的活性和成熟。

为了方便起见，BrainPhys™原代神经元培养试剂盒包含无血清的BrainPhys™神经元培养基（基础培养基）、NeuroCult™ SM1神经元添加物和NeuroCult™神经元铺板培养基，从而为您的原代组织来源神经元提供完整的培养体系。BrainPhys™神经元培养基基于Bardy和Gage的配方（Bardy et al. PNAS, 2015），可模拟中枢神经系统（CNS）的细胞外环境，以产生更高比例的突触活性神经元。NeuroCult™ SM1神经元添加物基于Brewer's B27配方（Brewer et al. J Neurosci Res., 1993），可在短期和长期无血清培养中维持细胞健康并促进神经突生长和分支。

为了避免因更换培养基而对细胞造成冲击，您也可以在进行功能性检测（例如基于微电极阵列的记录或活细胞荧光成像）时使用BrainPhys™培养基。

查看我们的其他资源，了解更多关于BrainPhys™产品线的信息。

实验数据

Table 1. Properties of Culture Media (C Bardy et al. Proc Natl Acad Sci USA, 2015)

Check-mark denotes physiological conditions and supported activities according to C Bardy et al. Proc Natl Acad Sci USA, 2015.

Rodent Neurons Matured in BrainPhys™ Neuronal Medium

Figure 1. Protocol for Plating and Culturing Primary Neurons with the SM1 Culture System

Primary rodent tissue dissociated in papain was plated in NeuroCult™ Neuronal Plating Medium, supplemented with NeuroCult™ SM1 Neuronal Supplement, L-Glutamine, and L-Glutamic Acid. On day 5, primary neurons were transitioned to BrainPhys™ Neuronal Medium, supplemented with NeuroCult™ SM1 Neuronal Supplement, by performing half-medium changes every 3 - 4 days.

Primary Neuronal Cultures Matured in BrainPhys™ Neuronal Medium Have Greater Numbers of Neurons

Figure 2. The SM1 Culture System Supports Long-Term Culture of Rodent Neurons

Primary E18 rat cortical neurons were cultured in the SM1 Culture System. A large number of viable neurons are visible after (A) 21 and (B) 35 days, as demonstrated by their bright neuronal cell bodies, and extensive neurite outgrowth and branching. Neurons are evenly distributed over the culture surface with minimal cell clumping.

Rodent Neuronal Cultures Matured in BrainPhys™ Neuronal Medium Show Improved Excitatory and Inhibitory Synaptic Activity

Figure 3. Pre- and Post-Synaptic Markers are Expressed in Rodent Neurons Cultured in the SM1 Culture System

Primary E18 rat cortical neurons were cultured in the SM1 Culture System. At 21 DIV, neurons are phenotypically mature, as indicated by the presence of an extensive dendritic arbor, and appropriate expression and localization of pre-synaptic synapsin (A,C; green) and post-synaptic PSD-95 (A,B; red) markers. Synapsin is concentrated in discrete puncta distributed along the somata and dendritic processes, as defined by the dendritic marker MAP2 (A,D; blue).

Expression of Pre-Synaptic Markers in Rodent Neurons Matured in BrainPhys™ Neuronal Medium

Figure 4. The SM1 Culture System Supports Increased Cell Survival

(A) Primary E18 rat cortical neurons were cultured in the SM1 Culture System or a Competitor Culture System for 21 days. Neurons cultured in the SM1 Culture System have a significantly higher number of viable cells compared to the competitor culture system (n = 4; mean ± 95% CI; *p < 0.05). (B) Primary E18 rat cortical neurons were cultured in Neurobasal® supplemented with NeuroCult™ SM1 Neuronal Supplement (SM1) or competitor B27-like supplements (Competitor 1,2,3) for 21 days. Cultures supplemented with NeuroCult™ SM1 Neuronal Supplement have an equal number of neurons compared to competitor-supplemented cultures. Bars represent standard error of mean.

Raster plots showing activity of neurons cultured in BrainPhys and SM1 versus commercial media

Figure 5. BrainPhys™ Supports Improved Neuronal Activity and More Consistent Network Bursting in Long-Term Culture

Raster plots from MEA recordings show the firing patterns of primary E18 rat cortical neurons across 8 electrodes at Weeks 2, 4, 6 and 8. Neurons were either cultured with a Commercial Medium with Supplements, Commercial Medium Plus with Supplements, BrainPhys™ and SM1, or BrainPhys™ and SM1 with 15 mM glucose. Detected spikes (black lines), single channel bursts (blue lines; a collection of at least 5 spikes, each separated by an ISI of no more than 100 ms), and network bursts (magenta boxes; a collection of at least 50 spikes from a minimum of 35% of participating electrodes across each well, each separated by an ISI of no more than 100 ms) were recorded for each medium. (A-D) Neurons cultured with Commercial Medium exhibited network bursting in Week 2 but no spiking activity was detected in subsequent timepoints. (E-H) In Commercial Medium Plus-cultured neurons, a high number of spikes and regular network bursting were detected at Week 2. A decreased number of spikes and inconsistent network bursting were observed in later time points, corresponding to the drop in MFR seen in Figure 4. (I-L) Without glucose, individual spiking was observed at Weeks 2 and 4 with BrainPhys™ and SM1 but network bursting was not detected until Weeks 6 and 8. (M-T) In contrast, neurons cultured with BrainPhys™ and SM1 with 15 mM glucose demonstrated strong spiking activity and consistent network bursting at all timepoints. MEA = microelectrode array; ISI = inter-spike interval; MFR = mean firing rate

MEA data showing mean firing rate of rodent primary neurons cultured in BrainPhys and SM1 versus commercial media

Figure 6. Glucose Supplementation in BrainPhys™ Maintains Neuronal Activity Over 8 Weeks in Culture

Primary E18 rat cortical neurons were cultured with BrainPhys™ and SM1 or other commercially available culture systems for 8 weeks. Neuronal activity can be detected at Day 9 with BrainPhys™, whereas activity is not detected until Day 14 in cultures maintained in either of the Commercial Media with Commercial Supplements. For Commercial Medium and Supplement-cultured neurons, mean firing rate remains low throughout culture. In contrast, a “peak-drop” activity pattern is observed in the Commercial Medium Plus condition, where mean firing rate increases rapidly within 2 days, followed by a drop in activity in the next 2 - 4 days. BrainPhys™and SM1 Kit with 15 mM glucose maintains the highest level of activity throughout the 8-week culture period.

产品说明书及文档

请在《产品说明书》中查找相关支持信息和使用说明，或浏览下方更多实验方案。

Document Type

Product Name

Catalog #

Lot #

Language

Document Type

Product Information Sheet

Product Name

BrainPhys™ Primary Neuron Kit

Catalog #

05794

Lot #

All

Language

English

Document Type

Safety Data Sheet 1

Product Name

BrainPhys™ Primary Neuron Kit

Catalog #

05794

Lot #

All

Language

English

Document Type

Safety Data Sheet 2

Product Name

BrainPhys™ Primary Neuron Kit

Catalog #

05794

Lot #

All

Language

English

Document Type

Safety Data Sheet 3

Product Name

BrainPhys™ Primary Neuron Kit

Catalog #

05794

Lot #

All

Language

English

文献 (51)

Modelling Lyssavirus Infections in Human Stem Cell-Derived Neural Cultures. V. Sundaramoorthy et al. Viruses 2020 mar

Abstract

Rabies is a zoonotic neurological infection caused by lyssavirus that continues to result in devastating loss of human life. Many aspects of rabies pathogenesis in human neurons are not well understood. Lack of appropriate ex-vivo models for studying rabies infection in human neurons has contributed to this knowledge gap. In this study, we utilize advances in stem cell technology to characterize rabies infection in human stem cell-derived neurons. We show key cellular features of rabies infection in our human neural cultures, including upregulation of inflammatory chemokines, lack of neuronal apoptosis, and axonal transmission of viruses in neuronal networks. In addition, we highlight specific differences in cellular pathogenesis between laboratory-adapted and field strain lyssavirus. This study therefore defines the first stem cell-derived ex-vivo model system to study rabies pathogenesis in human neurons. This new model system demonstrates the potential for enabling an increased understanding of molecular mechanisms in human rabies, which could lead to improved control methods.

View publication

Maturation of Human Pluripotent Stem Cell-Derived Cerebellar Neurons in the Absence of Co-culture. T. P. Silva et al. Frontiers in bioengineering and biotechnology 2020

Abstract

The cerebellum plays a critical role in all vertebrates, and many neurological disorders are associated with cerebellum dysfunction. A major limitation in cerebellar research has been the lack of adequate disease models. As an alternative to animal models, cerebellar neurons differentiated from pluripotent stem cells have been used. However, previous studies only produced limited amounts of Purkinje cells. Moreover, in vitro generation of Purkinje cells required co-culture systems, which may introduce unknown components to the system. Here we describe a novel differentiation strategy that uses defined medium to generate Purkinje cells, granule cells, interneurons, and deep cerebellar nuclei projection neurons, that self-formed and differentiated into electrically active cells. Using a defined basal medium optimized for neuronal cell culture, we successfully promoted the differentiation of cerebellar precursors without the need for co-culturing. We anticipate that our findings may help developing better models for the study of cerebellar dysfunctions, while providing an advance toward the development of autologous replacement strategies for treating cerebellar degenerative diseases.

View publication

One-Stop Microfluidic Assembly of Human Brain Organoids To Model Prenatal Cannabis Exposure. Z. Ao et al. Analytical chemistry 2020

Abstract

Prenatal cannabis exposure (PCE) influences human brain development, but it is challenging to model PCE using animals and current cell culture techniques. Here, we developed a one-stop microfluidic platform to assemble and culture human cerebral organoids from human embryonic stem cells (hESC) to investigate the effect of PCE on early human brain development. By incorporating perfusable culture chambers, air-liquid interface, and one-stop protocol, this microfluidic platform can simplify the fabrication procedure and produce a large number of organoids (169 organoids per 3.5 cm × 3.5 cm device area) without fusion, as compared with conventional fabrication methods. These one-stop microfluidic assembled cerebral organoids not only recapitulate early human brain structure, biology, and electrophysiology but also have minimal size variation and hypoxia. Under on-chip exposure to the psychoactive cannabinoid, $\Delta$-9-tetrahydrocannabinol (THC), cerebral organoids exhibited reduced neuronal maturation, downregulation of cannabinoid receptor type 1 (CB1) receptors, and impaired neurite outgrowth. Moreover, transient on-chip THC treatment also decreased spontaneous firing in these organoids. This one-stop microfluidic technique enables a simple, scalable, and repeatable organoid culture method that can be used not only for human brain organoids but also for many other human organoids including liver, kidney, retina, and tumor organoids. This technology could be widely used in modeling brain and other organ development, developmental disorders, developmental pharmacology and toxicology, and drug screening.

View publication

View All Publications
